• Platform
  - Dimensions: 3.3-in x 4.1-in
• Chipset
  - Intel^® JHL6540 Thunderbolt™ 3 Controller
• External Connectors
  - 2 x Thunderbolt™ 3 Type-C Ports (with up to 40Gbps bandwidth)
  * Supports daisy-chaining of up to six Thunderbolt™ devices

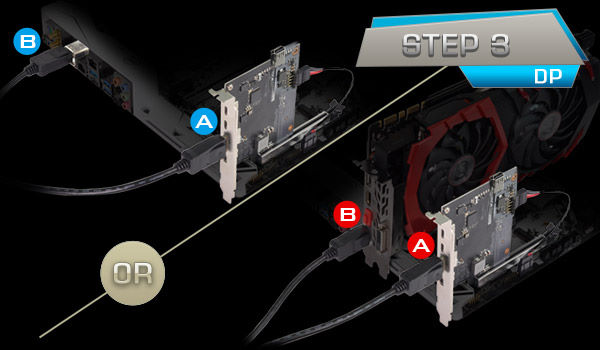

  - 1 x DisplayPort IN Port

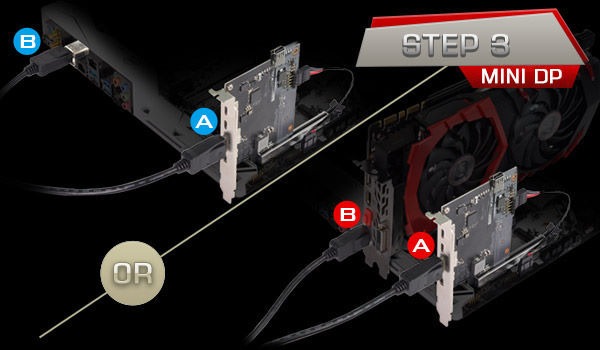

  - 1 x Mini DisplayPort IN Port

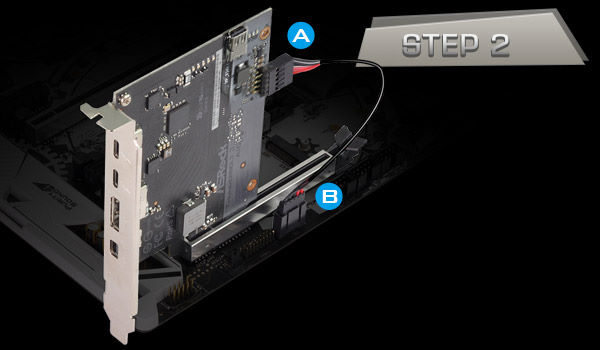

  - 1 x TBT Header
• Interface

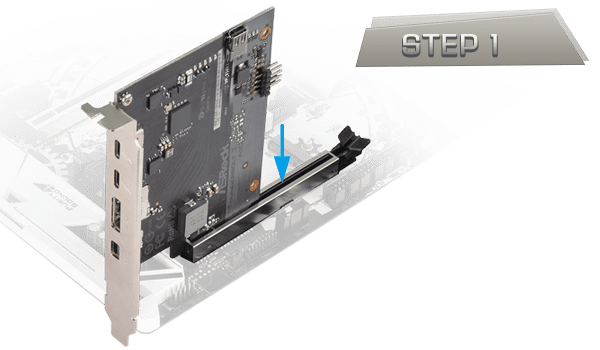

  - PCI Express 3.0 x4 interface
• Graphics
  - Supports Thunderbolt™ 3 interface with max. resolution of 5K (5120 x 2880)@ 60Hz for one display over a single cable connection
  - Supports Thunderbolt™ 3 interface with max. resolution of 4K x 2K (4096x2160) @ 60Hz for dual displays over a single cable connection
  - Supports up to two streams (eight lanes) of DisplayPort video bandwidth ; supports daisy-chaining of multiple DisplayPort monitors
• Data Rate

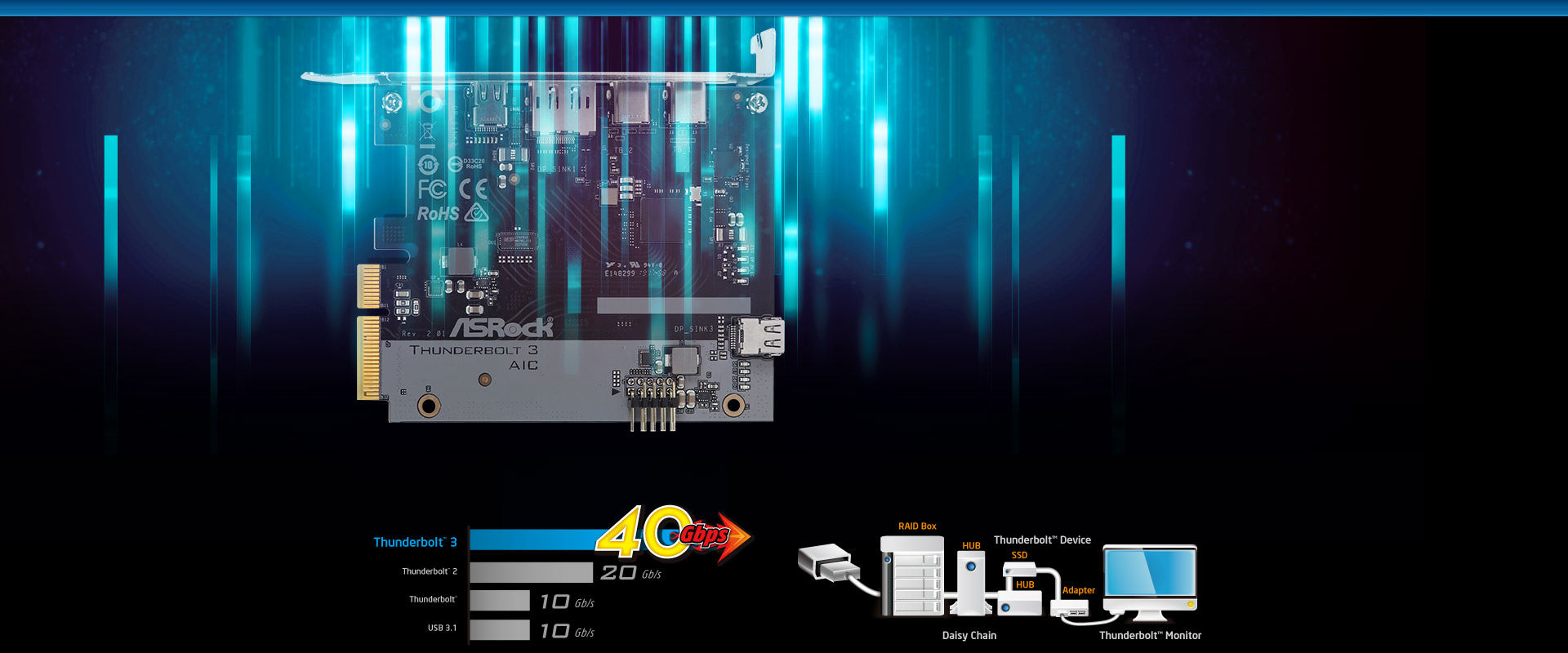

  - Supports 40Gbps bi-directional bandwidth per channel with Thunderbolt™ 3 port
• OS
  - Microsoft^® Windows^® 10 32-bit / 10 64-bit / 8 32-bit / 8 64-bit
• Accessories
  - Quick Installation Guide, Support CD
  - 1 x TBT Header Cable
  - 1 x DisplayPort Cable
  - 1 x Mini DisplayPort to Mini DisplayPort Cable
  - 1 x Mini DisplayPort to DisplayPort Adapter Cable

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
