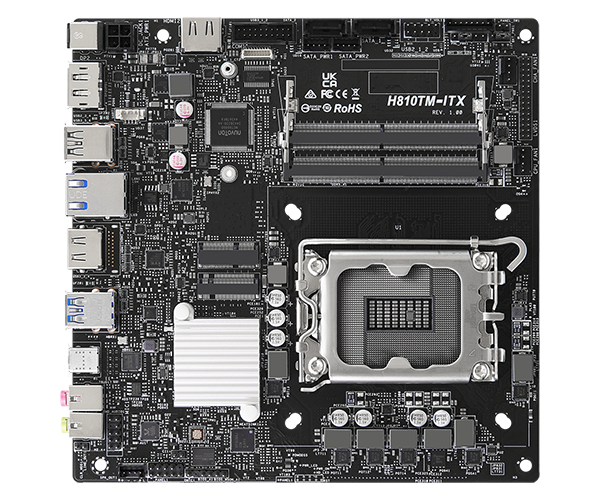

H810TM-ITX

Thin Mini-ITX Motherboard
CPU: Supports Intel^® Core™ Ultra Processors (Series 2) (LGA1851), up to 65W
Memory:
CSO-DIMM version: 2 x DDR5-6400MHz slots, up to 128GB
SO-DIMM version: 2 x DDR5-5600MHz slots, up to 128GB

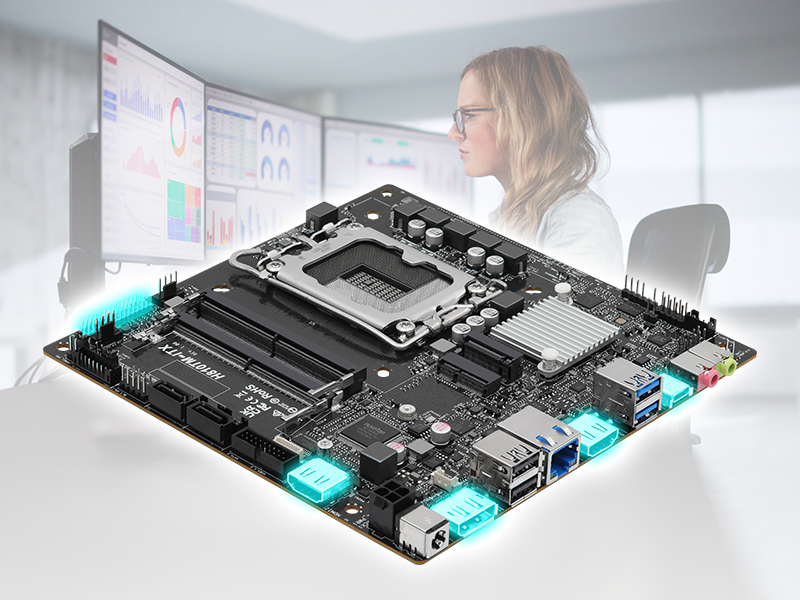

Multi Video Outputs:
1 x DisplayPort 1.4
1 x HDMI 2.1 (Rear Side)
1 x HDMI 2.1 (Internal)
1 x LVDS
1 x Intel^® Thunderbolt™ 4 (optional)

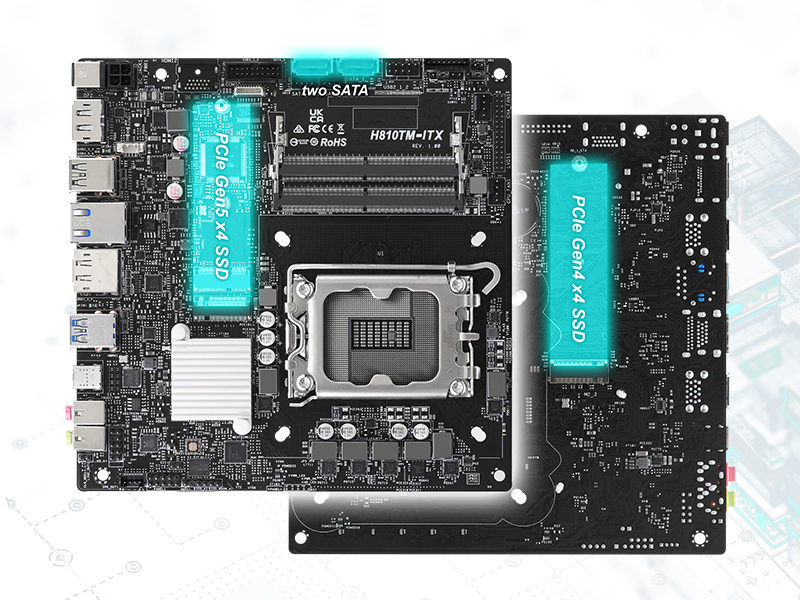

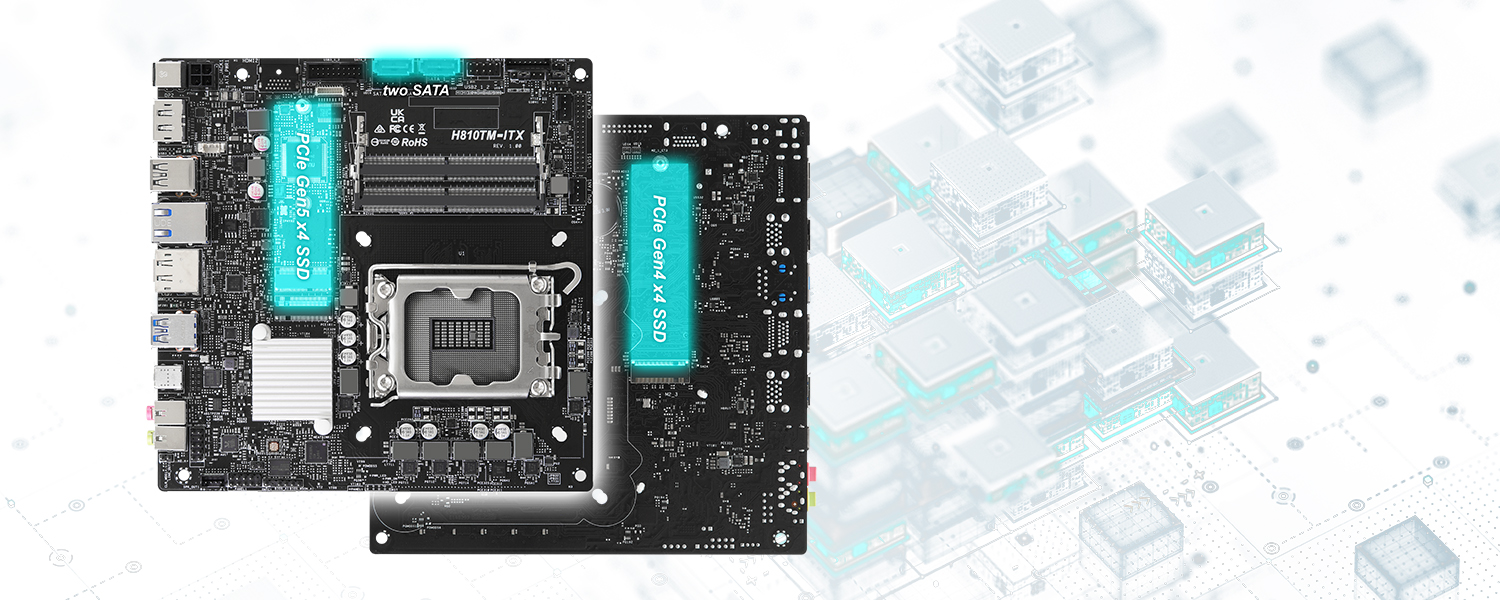

Quad Storage Devices:
1 x M.2 2280 PCIe Gen5x4 SSD
1 x M.2 2280 PCIe Gen4x4 SSD
2 x SATA3 6.0Gb/s ports
Abundant USB Ports:
2 x USB 3.2 Gen2 Type-A
2 x USB 2.0

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

H810TM-ITX supports multi-screen digital signage, product guidance systems, and customer analytics platforms. With up to five display outputs and strong computing capabilities, it empowers retailers to deliver interactive and real-time in-store experiences.

Ideal for ticketing, self-ordering, and information terminals, the board supports various USB peripherals, sensor modules, and touch displays. It enables smooth and intuitive self-service interactions with high system reliability.

Combining AI acceleration with high-speed storage, the H810TM-ITX supports features like lecture recording, facial recognition check-in, and auto-tracking cameras. It helps create smart classrooms with enhanced interactivity and operational efficiency.

Supports multi-display, 2.5G LAN, and multiple USB ports for video calls and device collaboration. Enables an all-in-one setup that reduces cable clutter and keeps the workspace efficient and clean.

CPU
- Supports Intel^® Core™ Ultra Processors (Series 2) (LGA1851)
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
- Supports Intel^® Thermal Velocity Boost (TVB)
- Supports Intel^® Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration
Chipset
- Intel^® H810
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 SO-DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 5600
- Supports DDR5 CSODIMM memory modules up to 6400
- Max. capacity of system memory: 128GB
- Supports Intel^® Extreme Memory Profile (XMP) 3.0x
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
Graphics
- Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Intel^® Xe LPG Graphics Architecture
- Four graphics output options: 2 x HDMI, 1 x DisplayPort 1.4, 1 x LVDS
- Supports Triple Display
- 2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
HDMI x 1 port (Rear)*
HDMI x 1 port (Internal)
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x LVDS, supports max. resolution up to Full HD (1920x1080) 60Hz

*Standard: HDMI; Optional: HDMI + DisplayPort (no Internal HDMI included)

**Optional: USB4 (20 Gb/s) or Intel^® Thunderbolt™ 4
Audio
- Realtek ALC269 Audio Codec
- 1 x MIC IN
- 1 x Line out
LAN
- 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel^® I226V)
Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel^® CNVi (Integrated WiFi/BT)
Storage
- 2 x SATA3 6.0 Gb/s Connectors
- 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

*Supports Intel^® Optane™ Technology
Supports NVMe SSD as boot disks

**Supports Intel^® Volume Management Device (VMD)
Connector
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x Panel Voltage Selection Header
- 1 x Backlight Inverter Voltage Selection Header
- 1 x FPD Brightness Header
- 1 x Panel Off Header
- 1 x LVDS Connector
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis Fan Connector (4-pin)**
- 1 x 4 pin 19V Power Connector (2-Pin)
- 1 x Front Panel Audio Connector
- 1 x Internal Speaker Header (4-Pin)
- 1 x Digital MIC Header
- 2 x SATA Power Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.
Rear Panel I/O
- 1 x DC Jack (Compatible with the 19V power adapter)*
- 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal)
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) **
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port

*Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.

**Supports USB PD 3.0 up to 5V@3A (15W) charging
Unique Feature
Superb Productivity
- Dual Channel DDR5
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- ASRock Auto Driver Installer
Accessories
- Quick Installation Guide, I/O Shield
- 2 x SATA Data with Power Cable
- 2 x Screws for M.2 Sockets
- 1 x Screw for WiFi Module
Hardware Monitor
- CPU/Chassis Temperature Sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
- 8 Layer PCB
- Solid Capacitor design
OS
- Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Description	Language	Download
Software/BIOS Setup Guide	English	Global	China
Software/BIOS Setup Guide	日本語 (Japanese)	Global	China
Software/BIOS Setup Guide	繁體中文 (T.Chinese)	Global	China
Software/BIOS Setup Guide	简体中文 (S.Chinese)	Global	China
Regulatory Notices	English	Global	China
Quick Installation Guide	English	Global	China

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

ASRock

H810TM-ITX

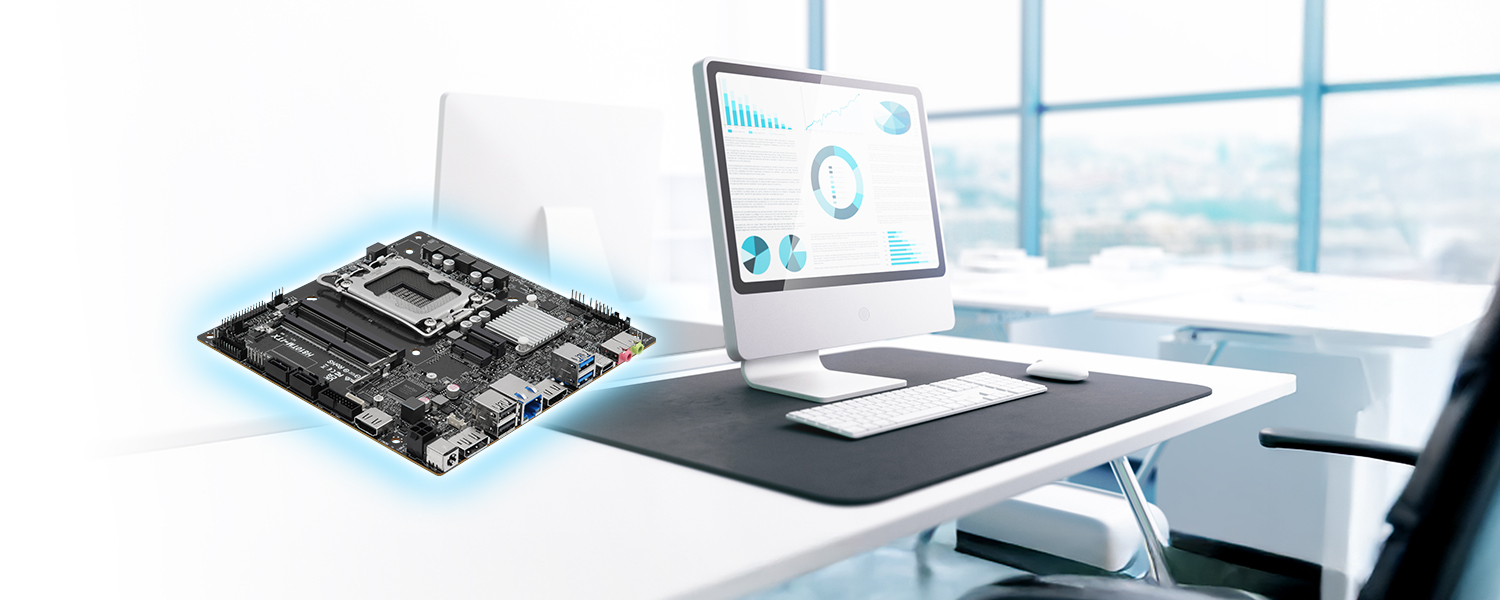

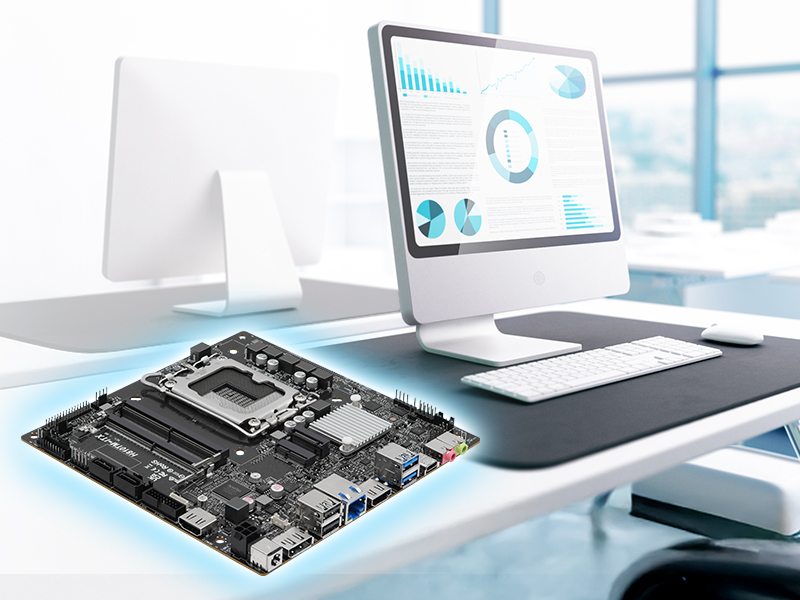

Reliable Performance, Adaptive Integration.

Real Use Cases. Smartly Deployed.

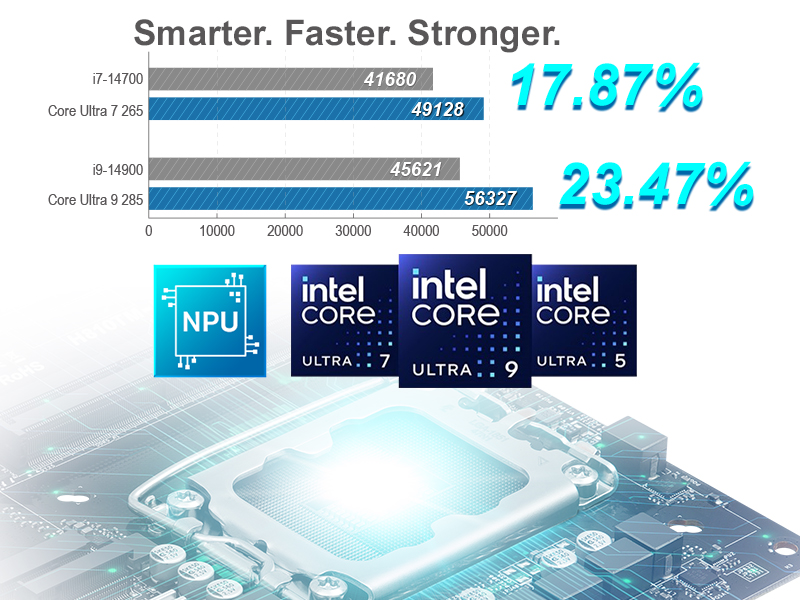

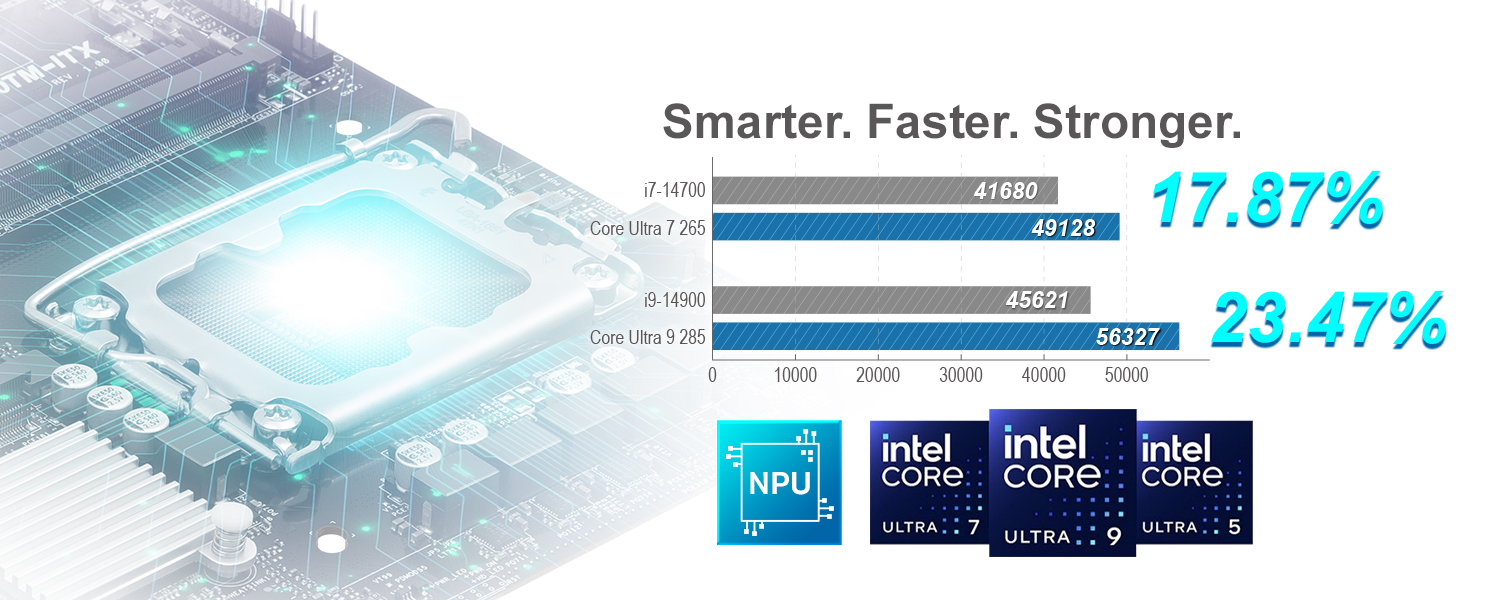

Ready for AI. Ultra Efficiency.

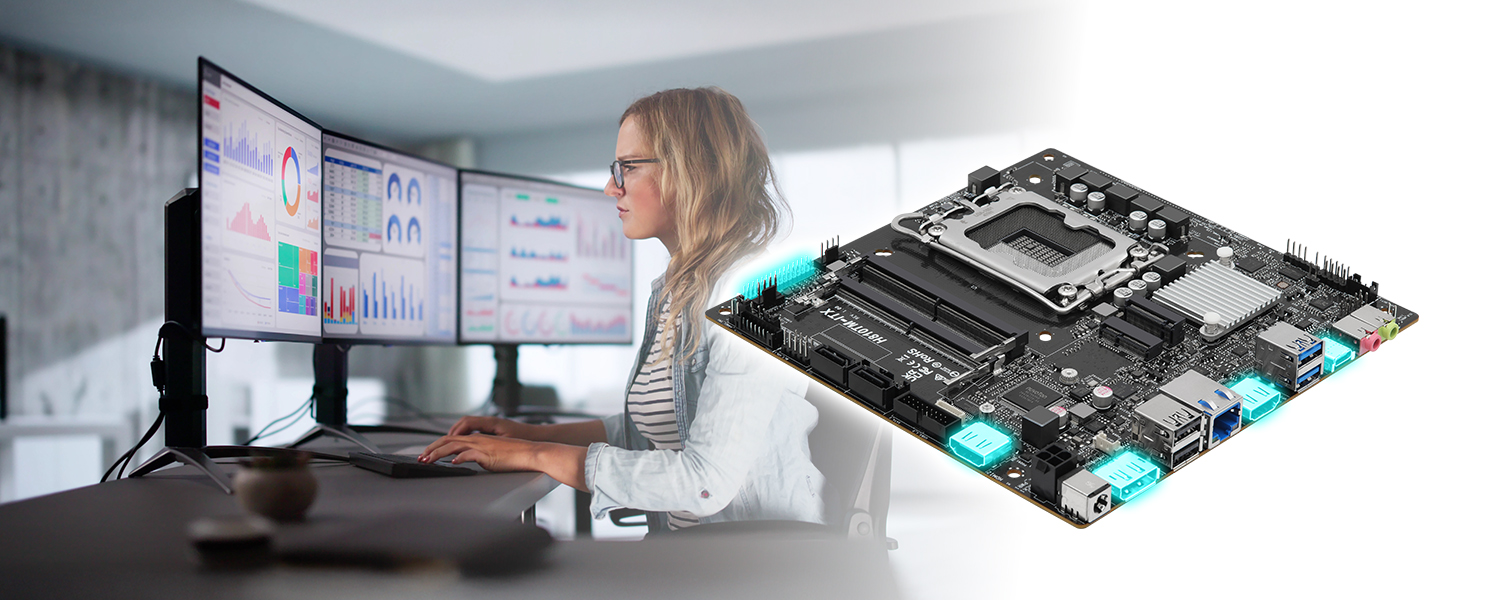

Five Outputs. Flexible Interfaces.

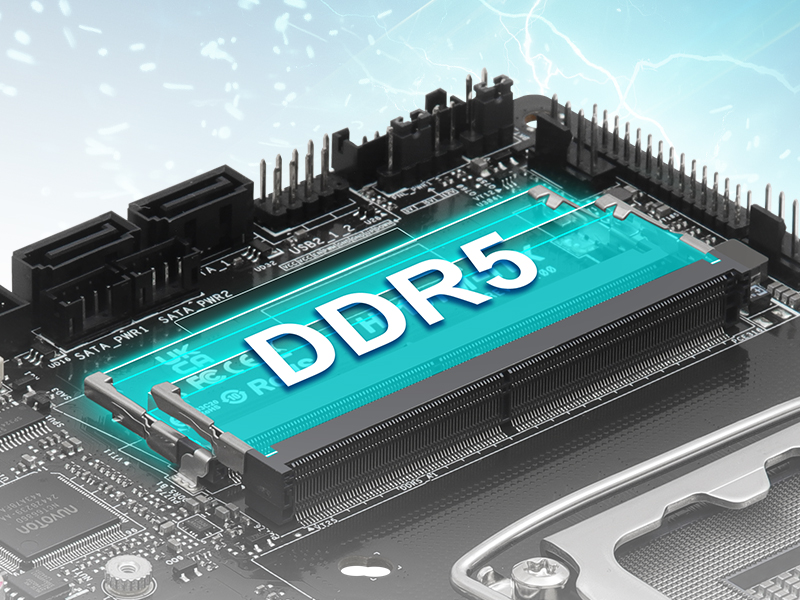

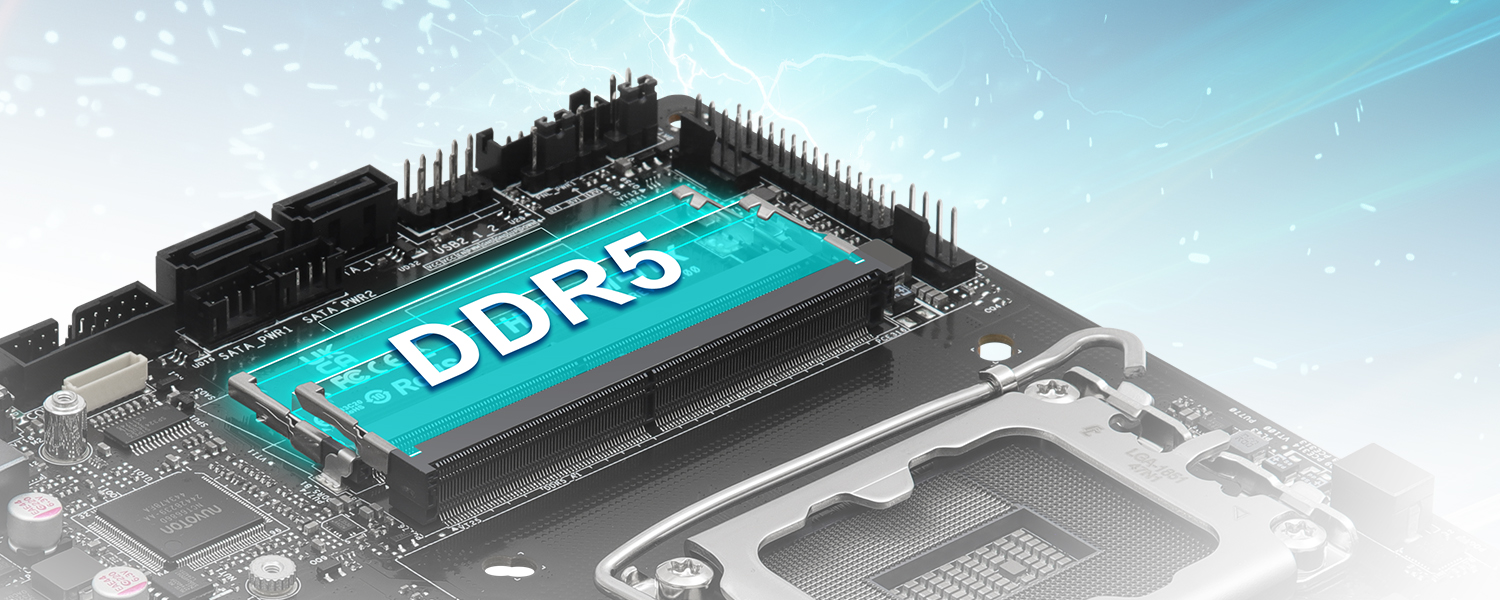

Dual Formats. High-Speed Memory.

Four Options. Fast and Reliable.

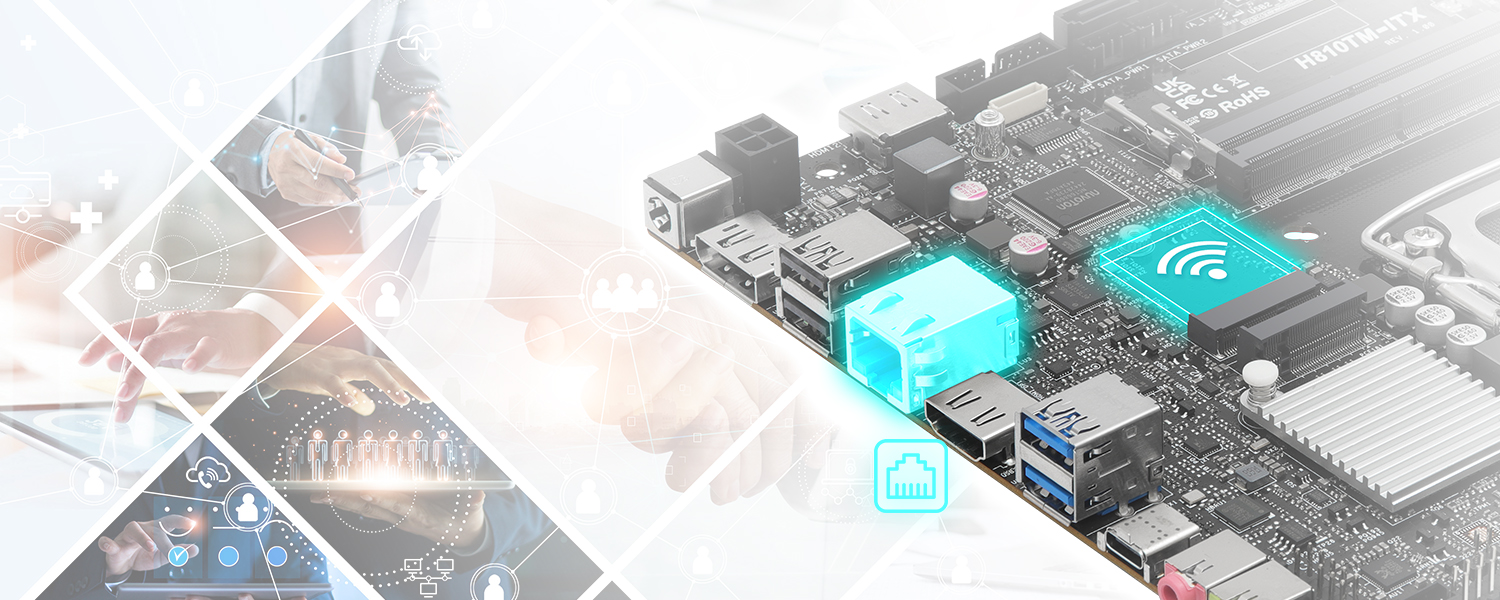

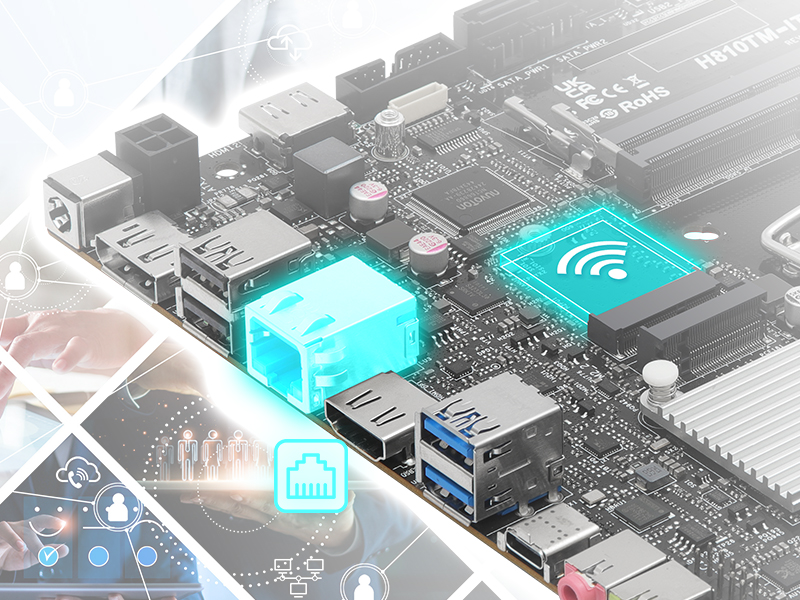

Wired and Wireless. Always Connected.

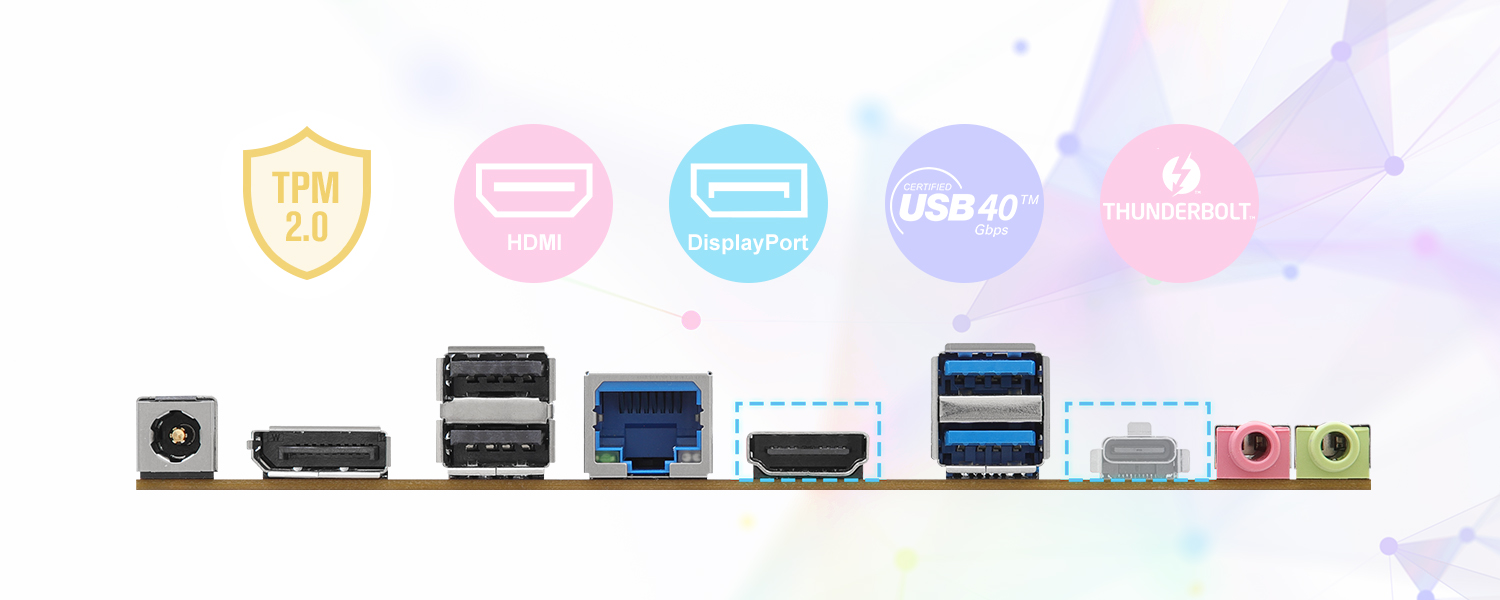

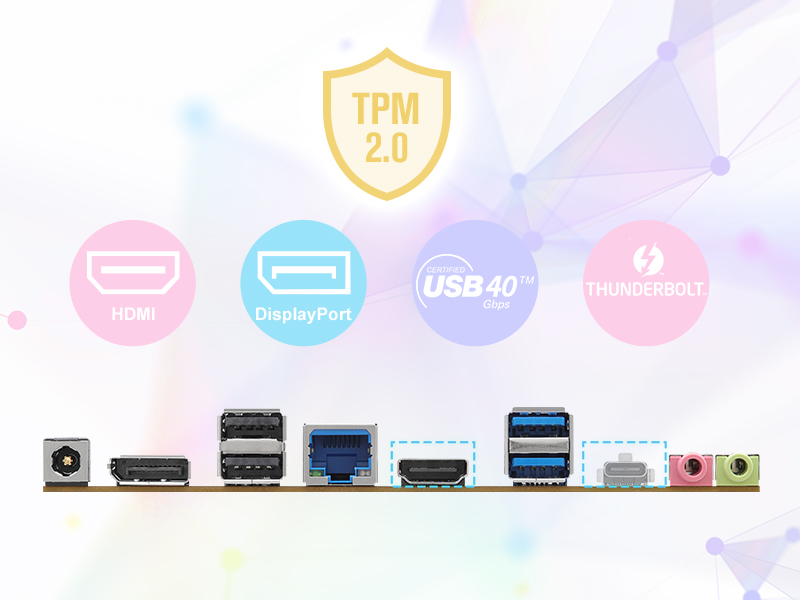

Custom Options, Tailored Specs.
