DeskMini X300 Series

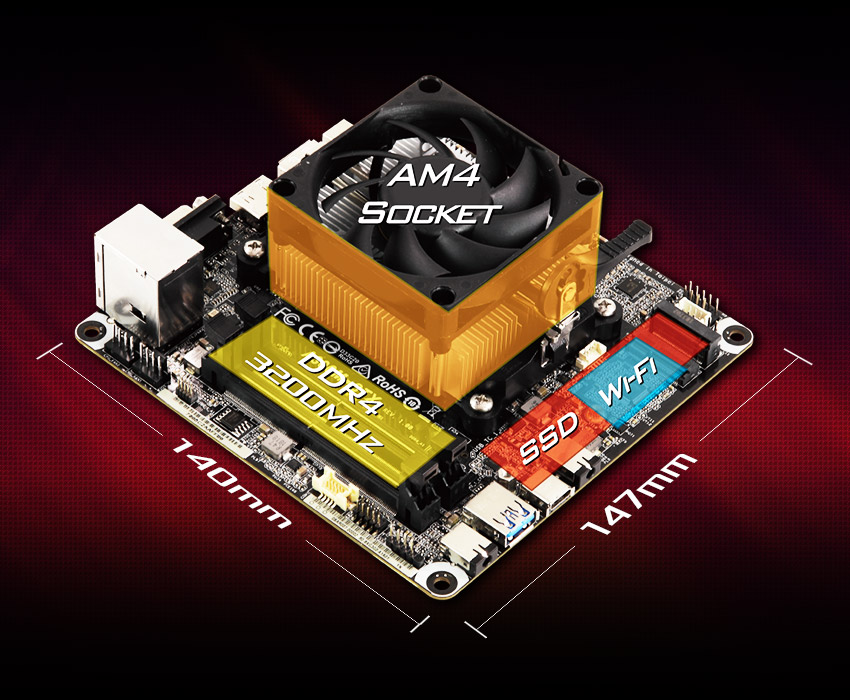

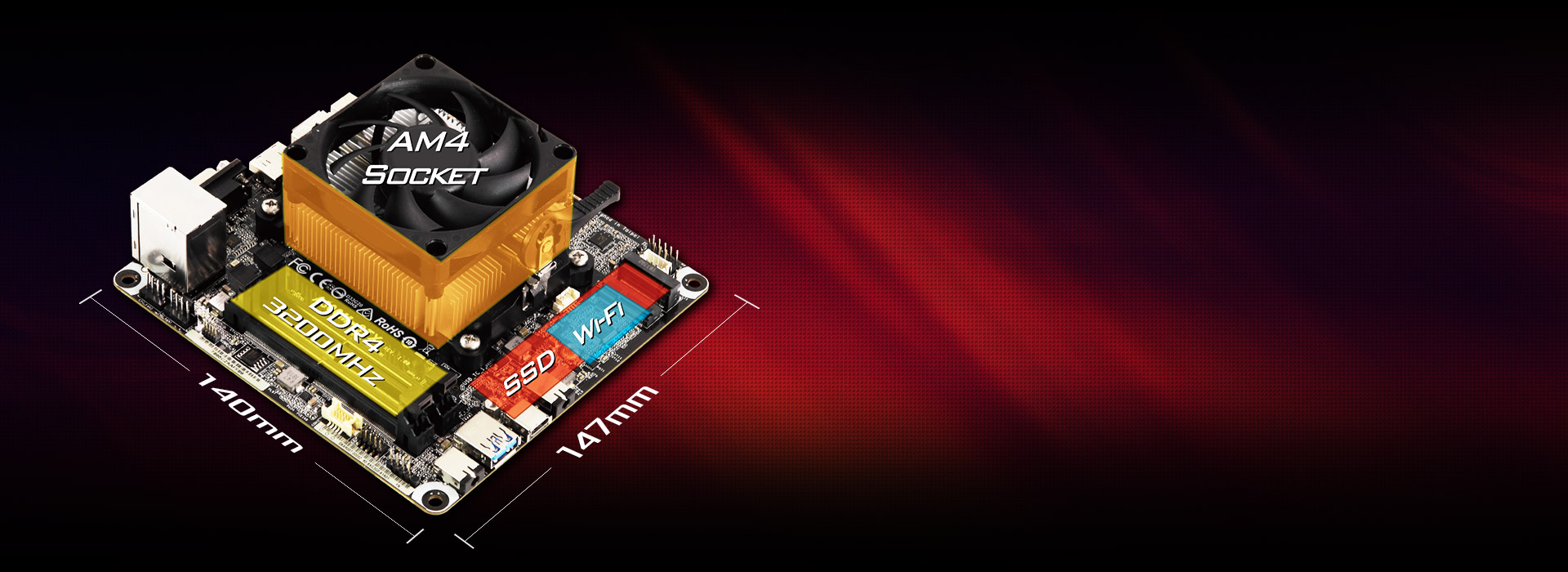

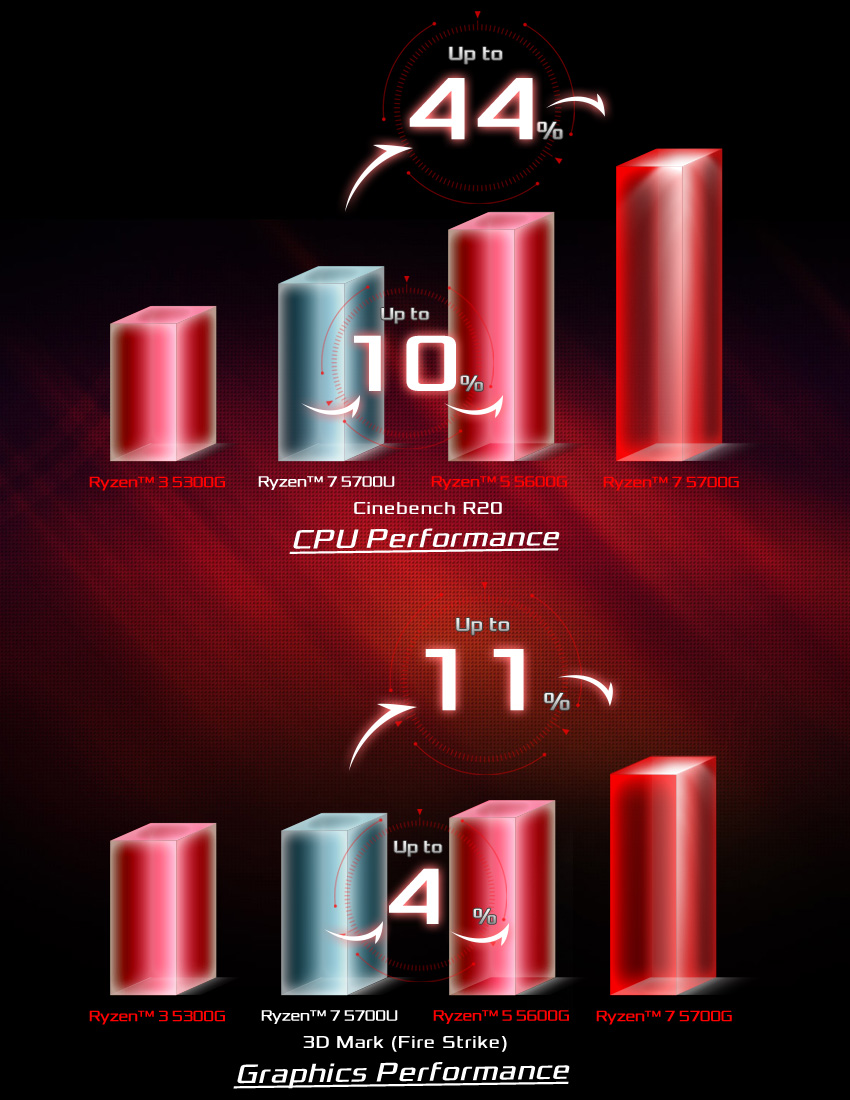

AMD AM4 Socket CPU
- Cezanne, Renoir, Picasso, Raven Ridge, up to 65W

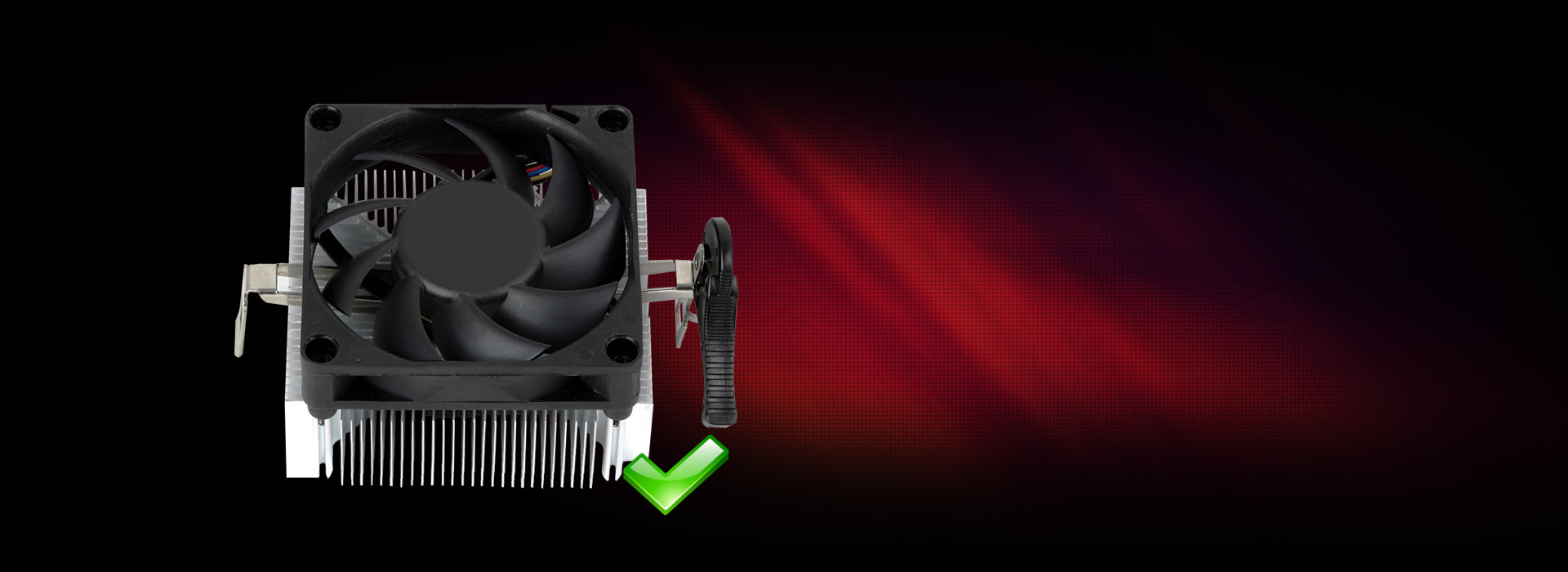

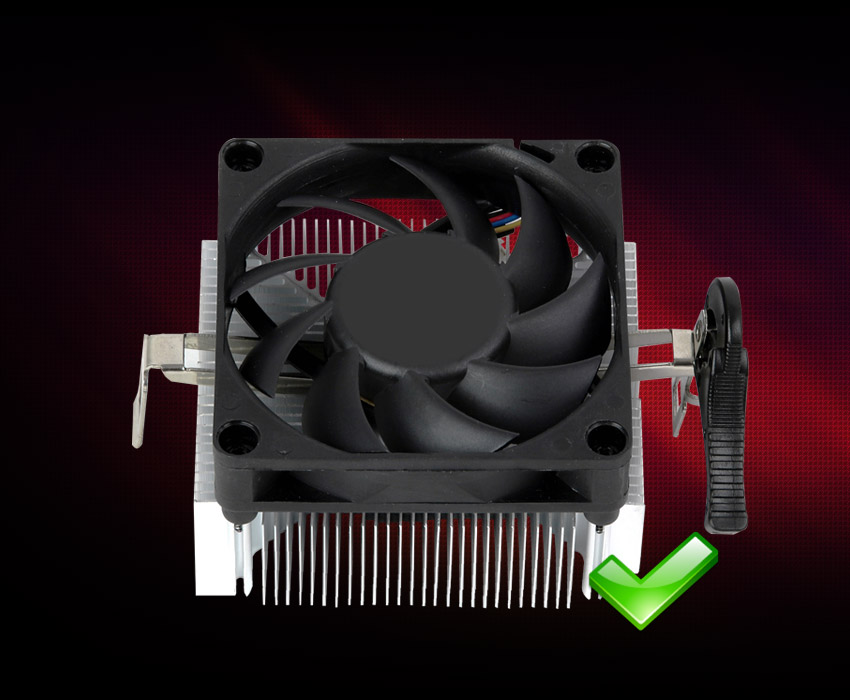

- Support MAX Height ≦ 46mm CPU Cooler

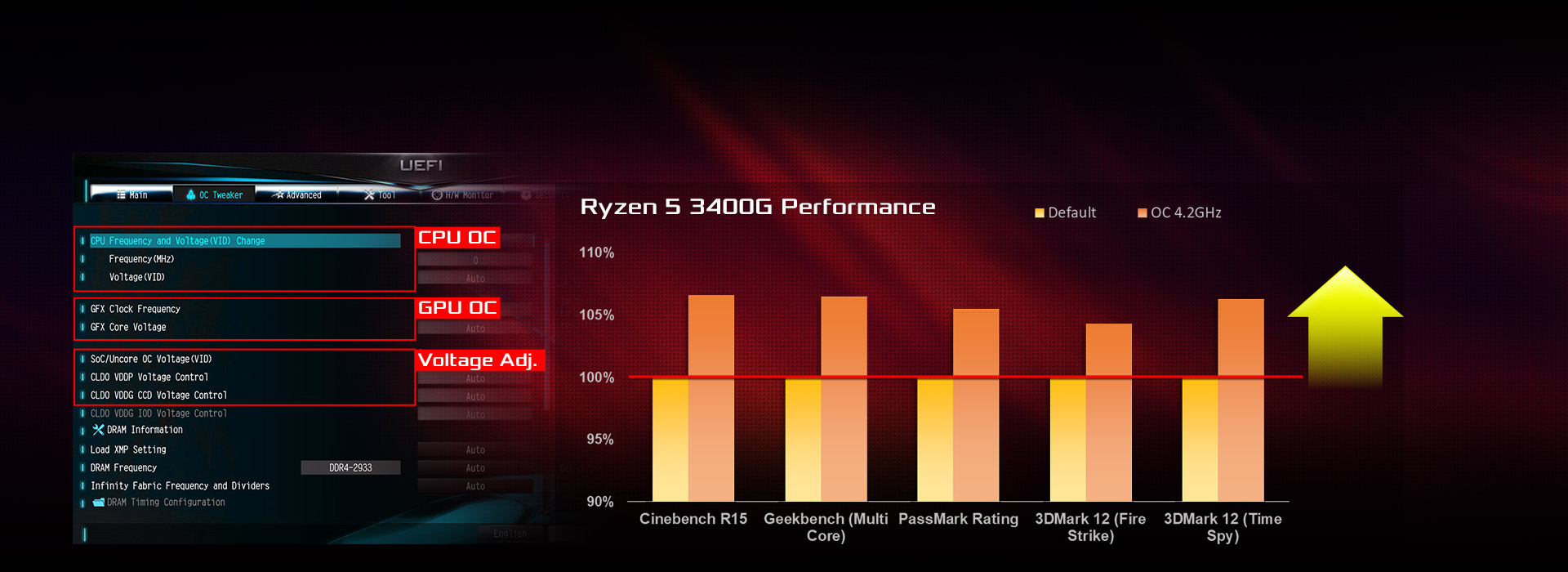

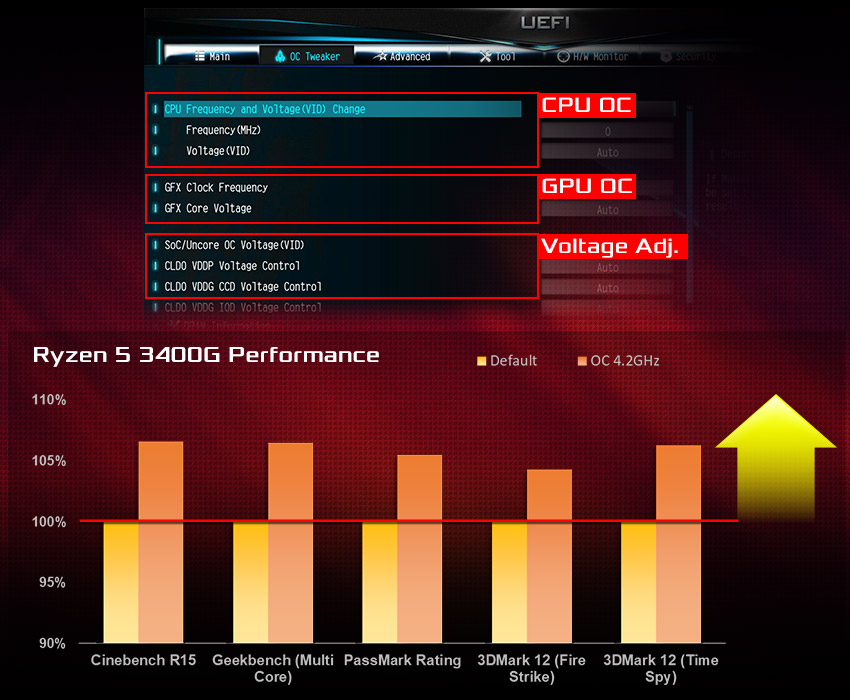

Supports Overclocking Option with X300
High-Speed DDR4-3200MHz Memory
Dual Ultra M.2 (NVMe)
- M2_1 M.2 (2280) – PCIe Gen3 x4
- M2_2 M.2 (2280) – PCIe Gen3 x2/x4
2 x 2.5" SATA 6Gb Hard Drive
Support RAID 0/1 function
HDMI, DisplayPort, D-Sub
M.2 For Wi-Fi Module
USB 3.2 Gen1 Type-C

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

DeskMini X300 Barebone

CPU
- Supports AMD AM4 Socket CPUs (Cezanne, Renoir, Picasso, Raven Ridge, up to 65W)
Chipset
- AMD X300
Cooler
- Supports AMD AM4 CPU Cooler (Max. Height ≦ 46mm)
Memory
- Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
- AMD Ryzen 5000/4000 series – 3200MHz
- AMD Ryzen 3000/2000 series – 2933MHz
Graphics Output
- HDMI(4K @60Hz)
- DisplayPort, D-Sub
Audio
- 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)
Front USB
- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
Rear USB
- 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,
Storage
- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
- 1 x Ultra M.2 (2280) Slot
- PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
- PCIe Gen3 x2 (Athlon 2xxGE series APU)
LAN
- Gigabit LAN (RealtekRTL8111H)
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors

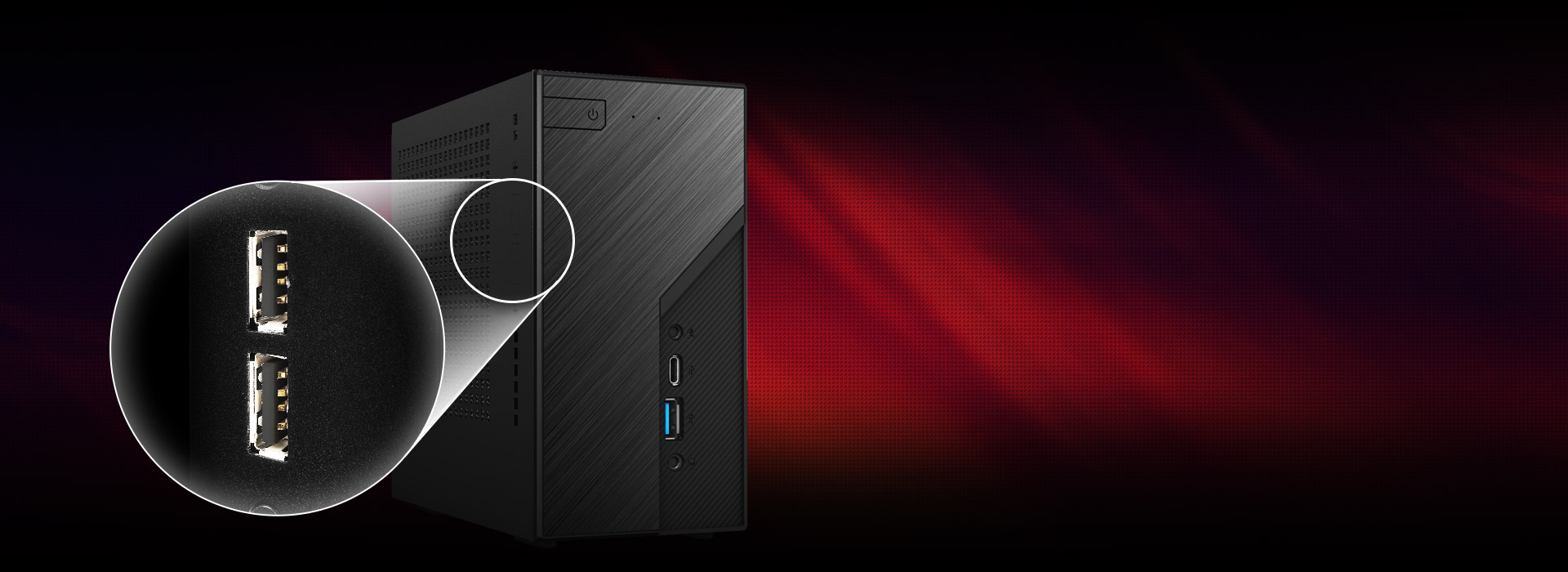

- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
- 1 x Audio Header (4-Pin)
Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
Dimension
- 155 x 155 x 80 mm (1.92L)
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Remark
DeskMini X300 Series don't support S3 function.

Description	Language	Download
Quick Installation Guide	Multi-Language	Global	China
RoHS	English	Global	China
FCC	English	Global	China
CE Declaration of Conformity	English	Global	China
UKCA Declaration of Conformity	English	Global	China
User Manual (X300M-STX)	English	Global	China
Quick Installation Guide (X300M-STX)	Multi-Language	Global	China
RAID Installation Guide (X300M-STX)	English	Global	China
RAID Installation Guide (X300M-STX)	简体中文 (S.Chinese)	Global	China
RAID Installation Guide (X300M-STX)	繁體中文 (T.Chinese)	Global	China
DeskMini Addressable LED Quick Installation Guide	English	Global	China
DeskMini USB Hub Quick Installation Guide	English	Global	China

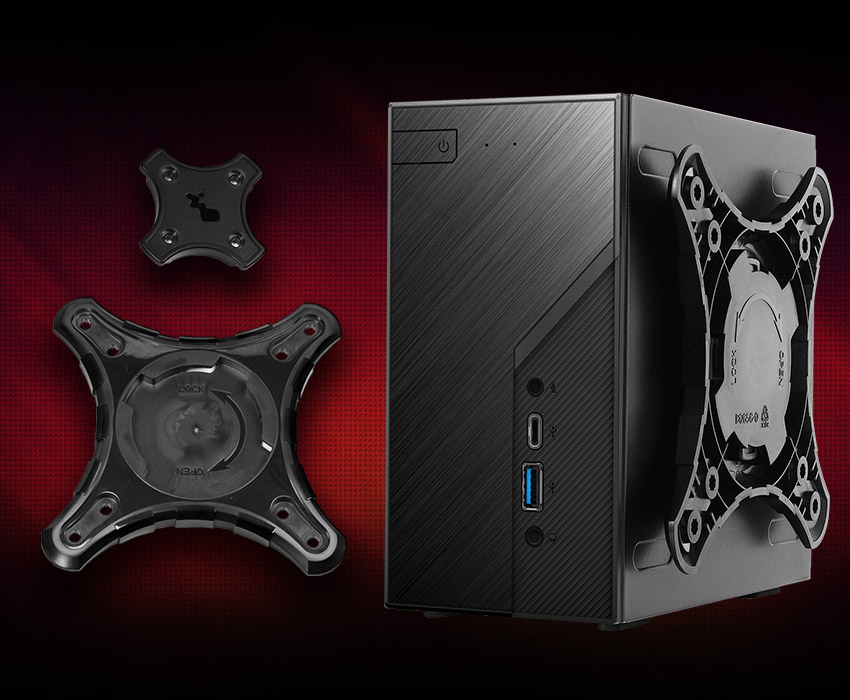

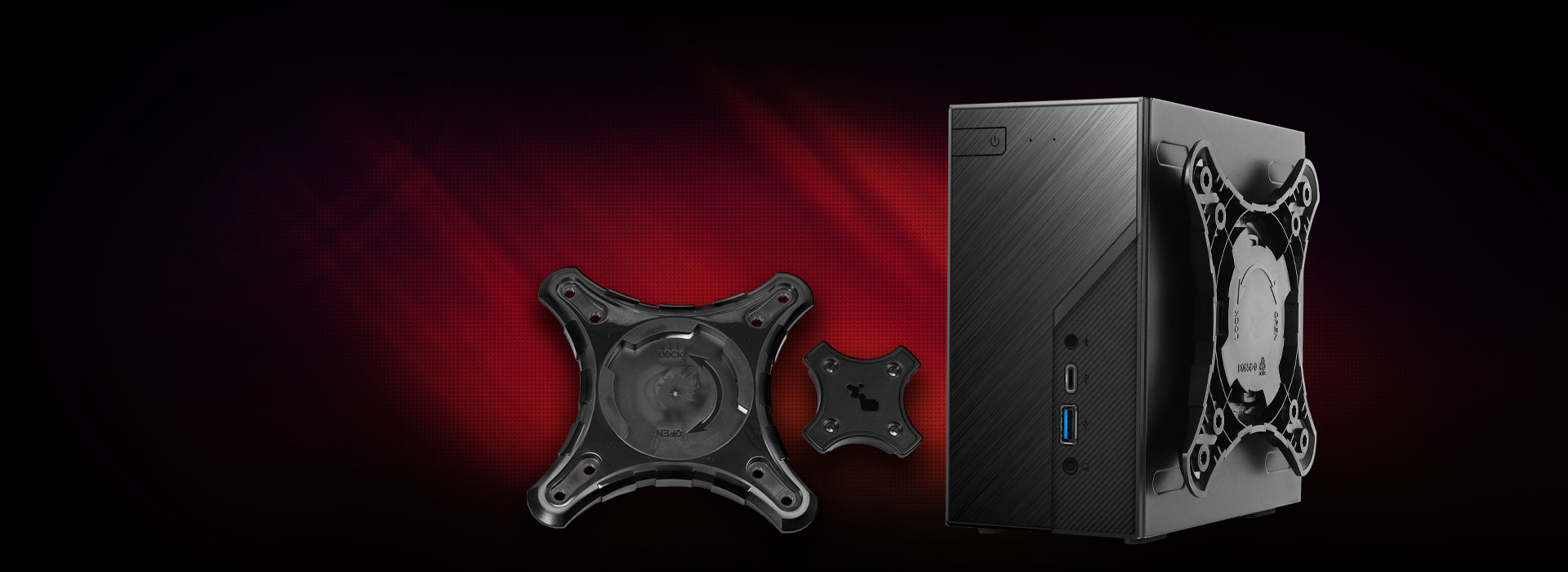

DeskMini VESA Mount Kit Quick Installation Guide	English	Global	China
DeskMini WiFi Cable Quick Installation Guide	English	Global	China

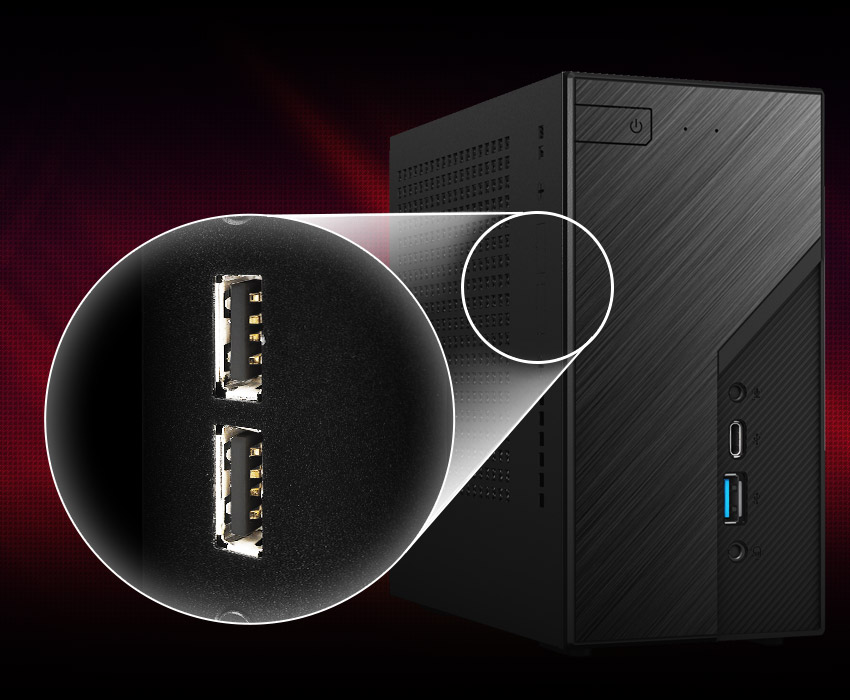

DestMini USB2.0 Front Panel Quick Installation Guide	English	Global	China
