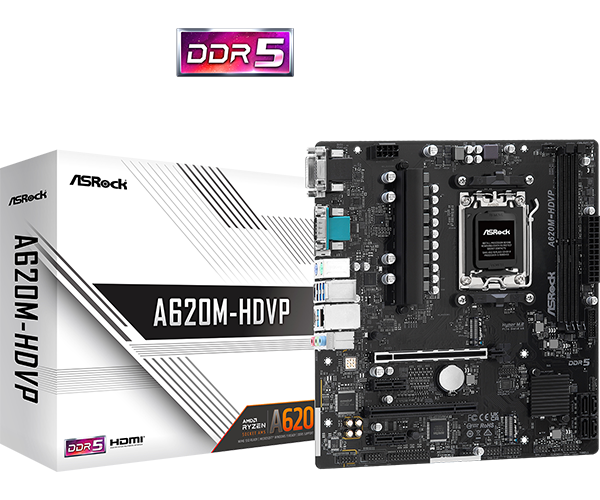

A620M-HDVP
Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors

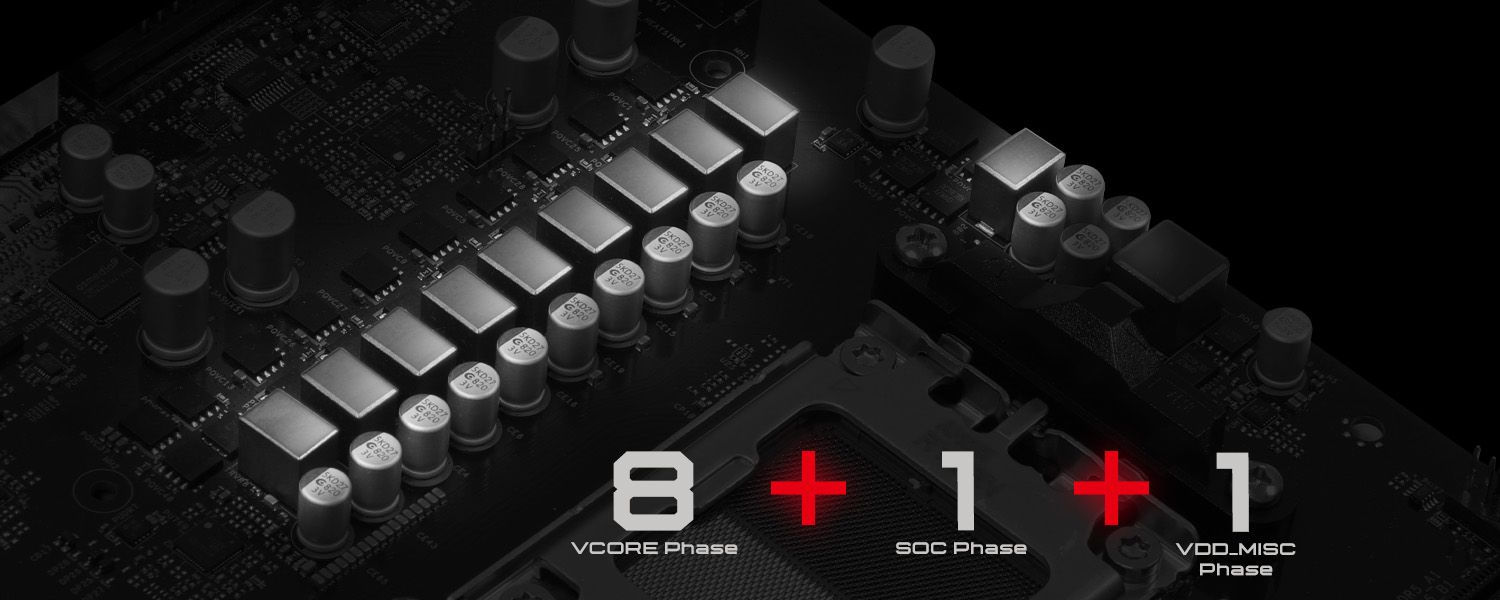

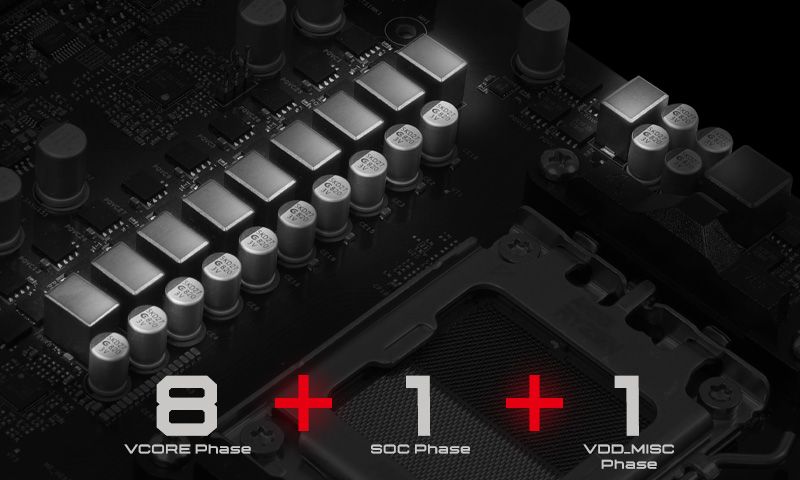

8+1+1 Power Phase
2 x DDR5 DIMMs Supports Dual Channel, up to 7200+ (OC)
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

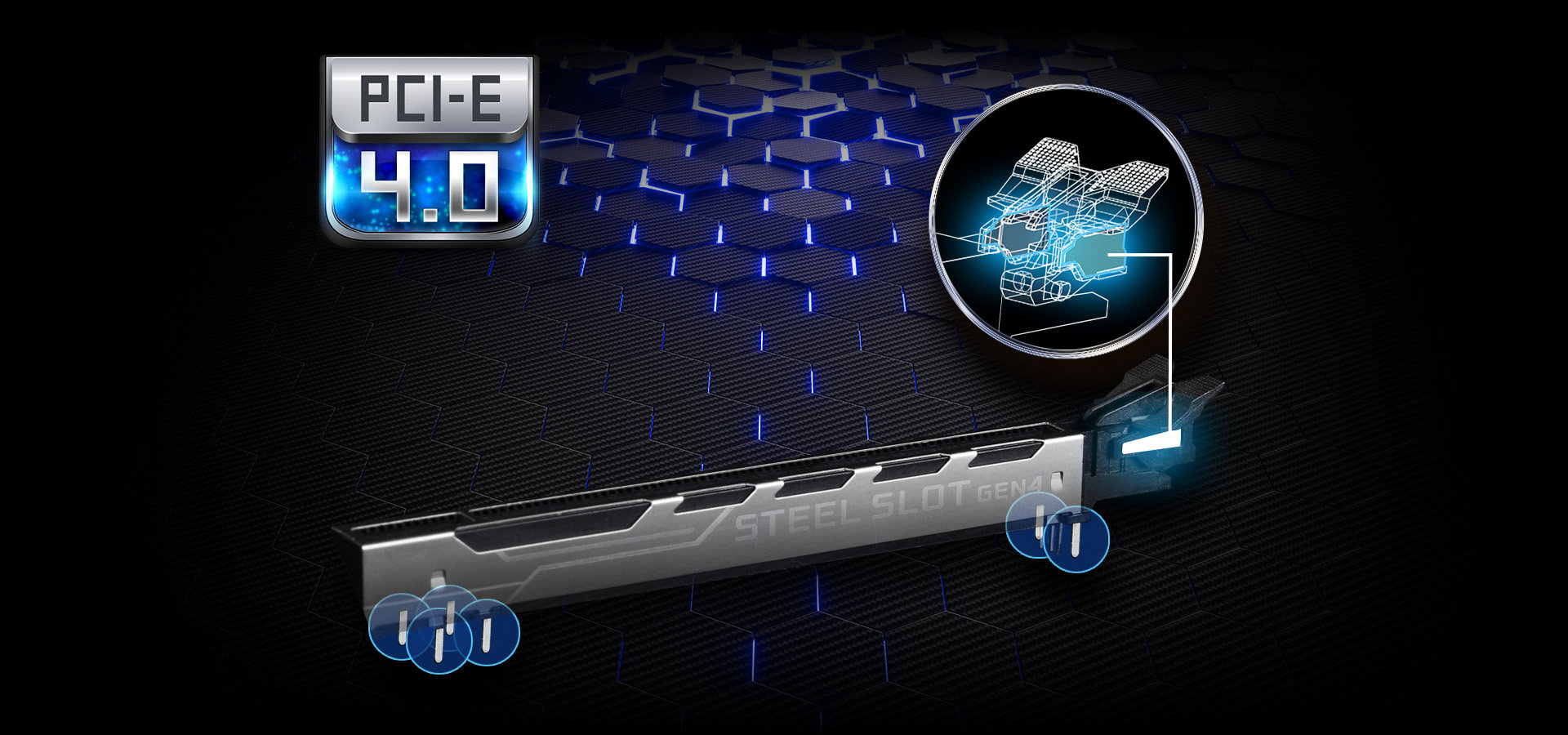

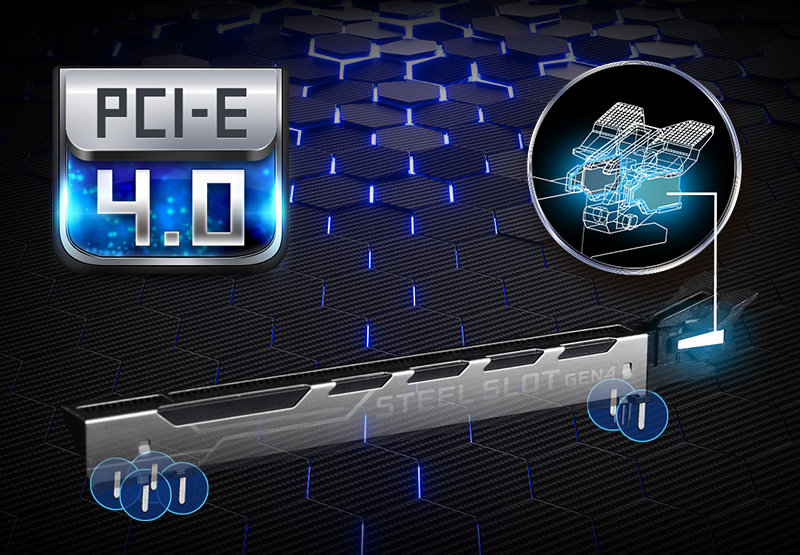

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include: ✔ Extra anchor points ✔ Stronger latch ✔ Ensure signal stability ✔ Make sure heavy graphics cards to be well-installed.

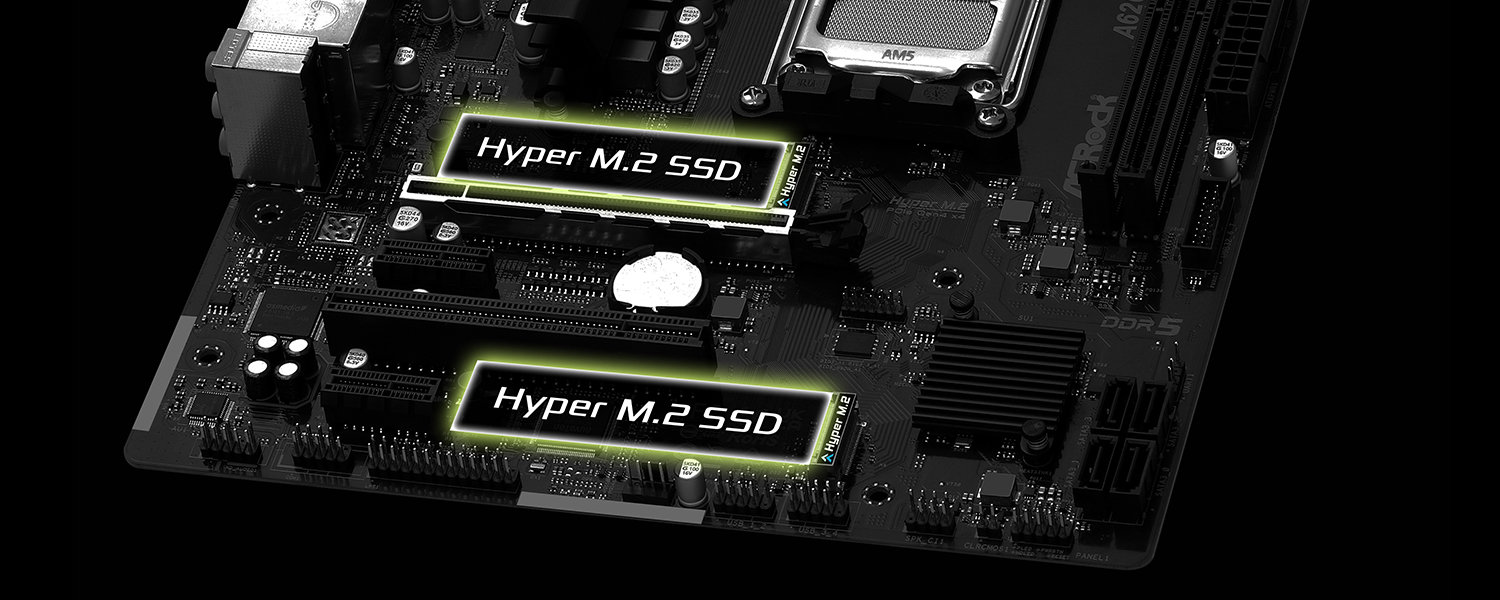

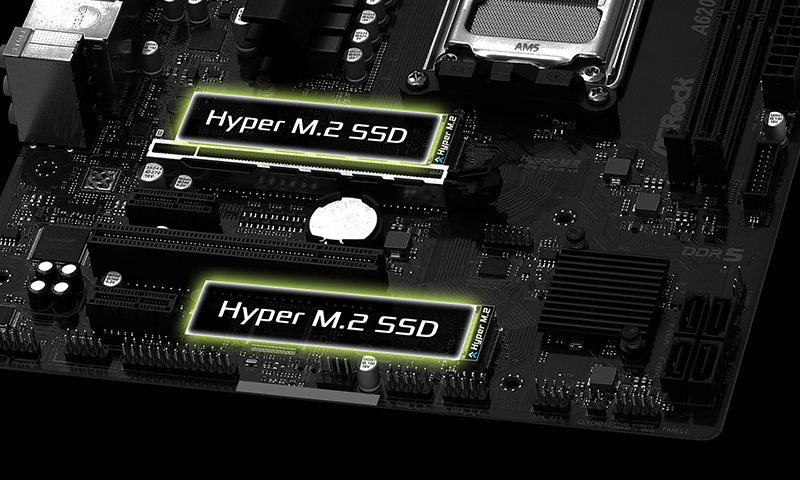

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
*Charge speed may vary due to controller protocol, please make sure your device can support 3.0A charging.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1: Install Auto Driver Installer step2: Update drivers needed step3: Done!
Quadruple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Quadruple Monitor. You may choose up to four display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
*Supported with processors with integrated graphics only.
Connect All Devices
Besides a COM and print header, there's also a COM port on the rear I/O.
Unique Feature
Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 8+1+1 Power Phase design EZ Update - ASRock Auto Driver Installer
CPU
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
- AMD A620
Memory
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.0 TMDS/FRL 6G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DVI-D, supports max. resolution up to Full HD (1920x1200) 60Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H
Slots
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x PCI Slot - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
* Supports NVMe SSD as boot disks
Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
USB
CPU: - 4 x USB 3.2 Gen1 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 2 x USB 3.2 Gen1 Type-A (Front) - 4 x USB 2.0 (Front)
* All USB ports support ESD Protection
Connector
- 1 x Print Port Header - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis Fan Connector (4-pin)** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN2 supports the fan power up to 1A (12W). *** CHA_FAN1/WP support the fan power up to 2A (24W). *** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM2 - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Type-A Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables
Form Factor
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
